CUMPAN Digital Cockpit Display – KTM 690 / Husqvarna 701 / GasGas 700
Tax included. Shipping calculated at checkout
Carefully selected performance components designed to further enhance your riding experience.
DESCRIPTION
Compact. Precise. Built for real riders.
The CUMPAN Cockpit Display is a high-performance data system designed to give you full control over your engine parameters — in real time.
No unnecessary gimmicks.
Only relevant data.
Exactly where you need it.
SYSTEM OVERVIEW
The CUMPAN provides all critical engine information in a compact and highly readable format.
Designed for performance-oriented riders who want to monitor, optimize and protect their engine under all conditions.
CORE FUNCTIONS
• Engine RPM (shift control & performance monitoring)
• Engine temperature
• Gear position
• Ambient temperature
EXTENDED FUNCTIONS (optional modules)
• Oil pressure monitoring
• Lambda / AFR data display
• Additional engine temperature channels
PERFORMANCE ADVANTAGES
• Optimized shift timing via RPM-based shift light
• Early warning for critical engine conditions
• Better control under load and race conditions
• Prevents engine damage through real-time monitoring
• Enables full utilization of engine performance
FEATURES (2023 UPDATE)
• Dual multifunction analog inputs
• Up to 3 engine temperature channels (e.g. oil & coolant)
• Compatible with common lambda controllers
• Visual oil pressure warning
• Faster processing and improved UI
• Optimized menu navigation
• Multiple layouts and color options
• Sensor calibration capability

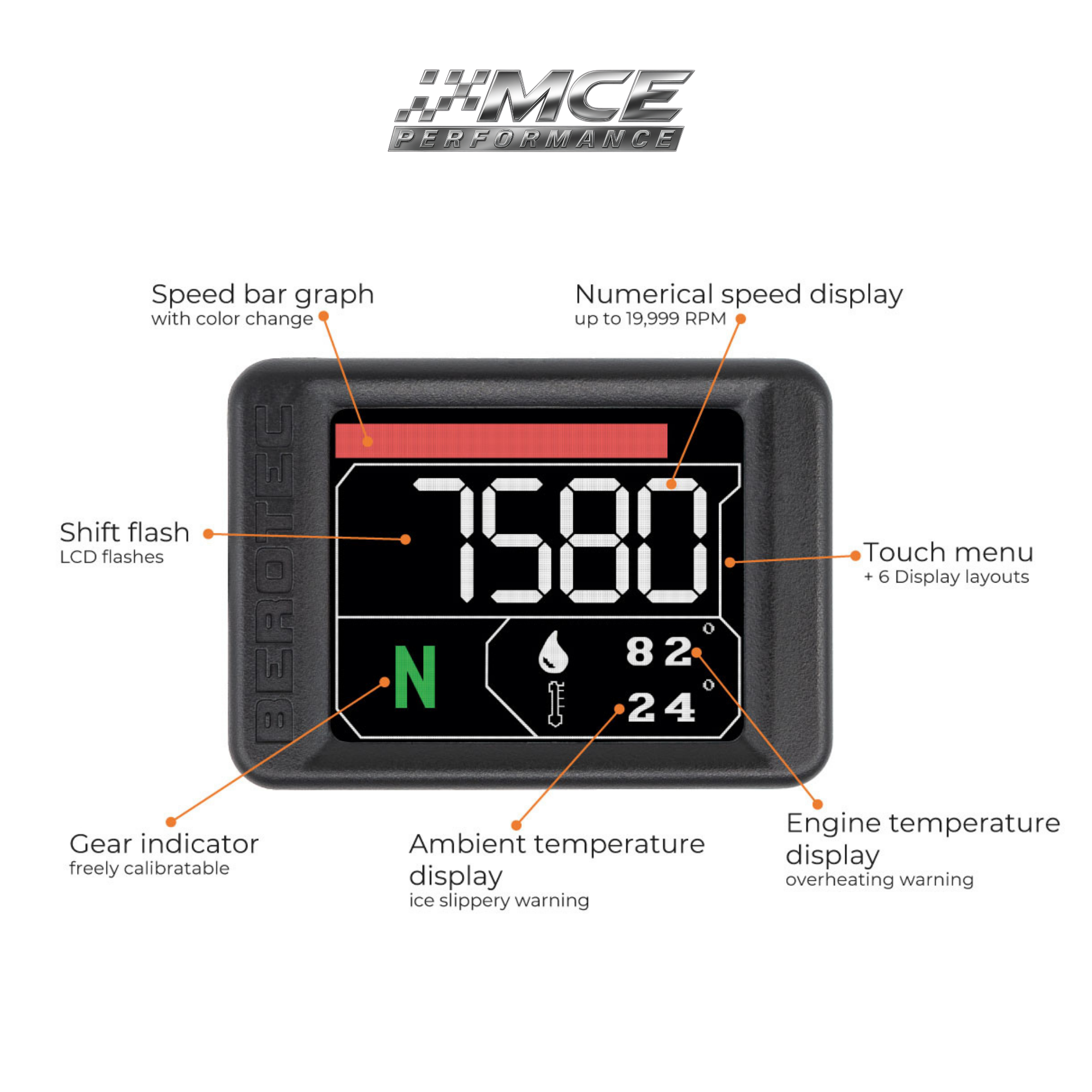

USER EXPERIENCE
• Full control via integrated touchscreen
• 6 different display layouts
• 16 selectable colors
• Configurable RPM and temperature limits
• Integrated shift light with warning function
• Ice warning at low ambient temperatures
TECHNICAL DATA
• Voltage: 9–15 V DC
• Power consumption: ~60 mA
• Display resolution: 160 × 128 px
• Screen size: 1.8”
• Protection rating: IP67
• Dimensions: 54.4 × 38.9 × 13.1 mm
COMPATIBILITY
• KTM 690 SMC-R / Enduro (Euro 3 – Euro 5)
• Husqvarna 701 Supermoto / Enduro (Euro 3 – Euro 5)
• GasGas 700 ES / SM

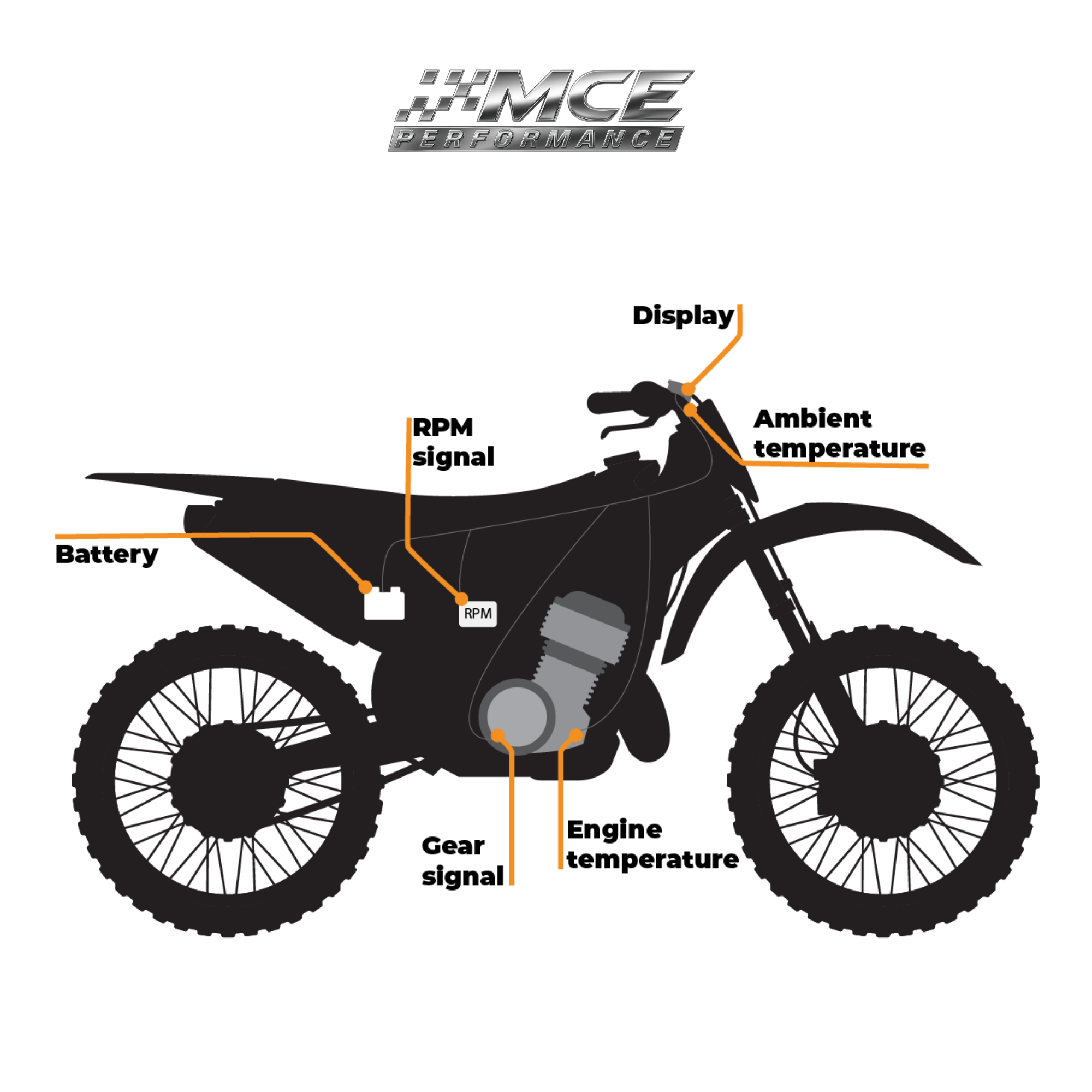

SCOPE OF DELIVERY
• CUMPAN display incl. wiring harness
• Engine temperature sensor (M10x1)
• RPM signal connector
• Gear signal connector
• Mounting hardware (cable ties + 3M VHB pad)
