MCE GPS2CAN Modul

MCE Performance GPS2CAN Module – compatible with ECUMaster ADU.

The MCE GPS2CAN module sends position, speed and time via CAN bus directly to your ECUMaster ADU dashboard – ideal for lap timing, data logging and GPS speed. It is based on a high-quality Holybro GNSS module with a u-blox NEO-M9N receiver, running MCE firmware.

TECHNICAL DATA

• GNSS receiver: u-blox NEO-M9N
• Up to 4 GNSS concurrently: GPS, Galileo, GLONASS, BeiDou
• Frequency bands: GPS L1C/A, GLONASS L1OF, BeiDou B1I, Galileo E1B/C
• Position accuracy: 2.5 m
• Processor: STM32G4 (170 MHz)
• Interface: CAN bus
• Supply voltage: 4.7–5.2 V, current draw < 200 mA @ 5 V
• Operating temperature: -40 to +80 °C
• Housing: Ø 54 mm, height 14.5 mm
• LED indicators: Power and 3D Fix
• Connector: D-Sub 9 (male)

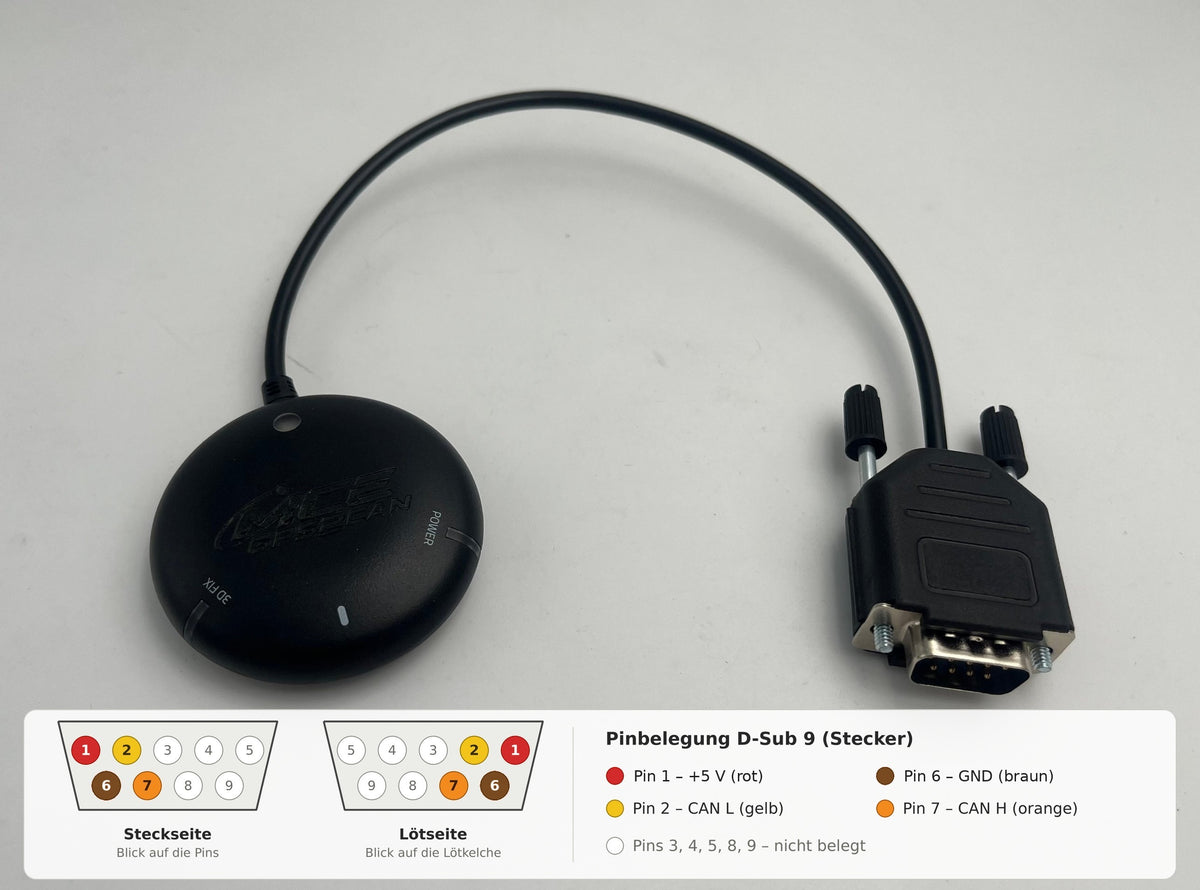

PIN ASSIGNMENT D-SUB 9

• Pin 1 – +5 V (red)
• Pin 2 – CAN L (yellow)
• Pin 6 – GND (brown)
• Pin 7 – CAN H (orange)
• Pins 3, 4, 5, 8, 9 – not connected
